Centrifugal Box Fans
Falvent is a leading manufacture of ventilation solutions for industrial and commercial applications. With a focus on innovation and customer satisfaction, we offer a range of products designed to meet the unique needs of our clients. Our team of experts is dedicated to delivering high-quality products and exceptional service.
ABOUT OUR CENTRIFUGAL BOX FANS
Falvent assemble and design the finest centrifugal box fans on the market with competitive prices and our team works hard to ensure that you receive the highest quality custom-designed centrifugal box fans, precisely as ordered and delivered on time to meet your project goals.
The range of centrifugal box fan sizes and capacities cover low to medium pressure systems for ventilation as well as for removal and transport of air within practically all environments. Falvent centrifugal box fans obtained the UL Certification which guarantees the compliance of the products with the safety requirements.
Falvent centrifugal box fans tested in accordance with UL-705 standard and certified in ZACT: Power Ventilators category and rigorous tests have been carried out via UL team like temperature test, water spray test, dielectric voltage test and starting current test. Thus, Falvent centrifugal box fans have product safety certification UL logo.
Falvent has met the requirements in ISO 9001, which defines an ISO 9001 Quality Management System (QMS) and obtained the ISO certification accordingly. Falvent centrifugal box fans has CE mark logo where it declared with EEE regulations and meets the requirements of the relevant European product safety legislation.

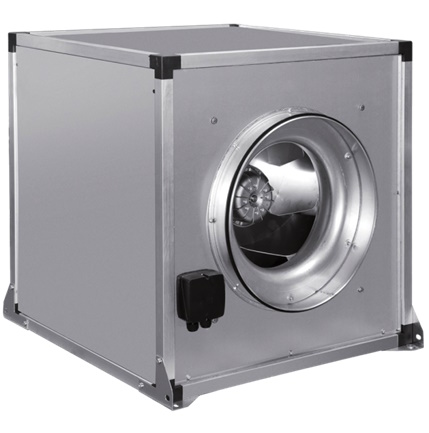

The casing consists of a frame manufactured from profiled steel, 4 double skin panels from galvanized steel with aluminum profile edging and 30 mm mineral wool insulation inside. The fan inlet side is equipped with an inlet cone and a circular connection spigot.
For cleaning and maintenance works the inspection door can be completely removed using the door handle.
The door handle is included loose in the delivery and can be mounted on any side, as desired. The side walls and the cap can be easily removed allowing three possible discharge directions (left, right or up). The internal surface of the casing is completely smooth. The side panels are screwed in the casing frame, so that no screws protrude on the inside of casing. Motor are mounted externally to the air stream enabling the fan to operate at working temperature up and including 120deg c
The backward curved strong impeller consists of powder coated steel plate and is mounted on the shaft of three phase motor with a special shaft seal that prevents the ingress of oil and water.
The impeller is dynamically balanced according to the quality class G 6.3 of DIN / ISO 1940. The standard range comprises 13 sizes with impeller diameters from 225 to 1000 mm and optimized design through CFD simulation and actual testing.
All motors three Phase asynchronous motor, WEG brand, UL certified, IEC standard motors in IE3, with lower acquisition cost and high technology, easy installation, easy operation and low maintenance cost and suitable for the use with Frequency Inverters. Motors are foot mounted, totally enclosed type to IP55 with a standard industrial paint finish and Class F insulation, TEFC cooling method and wired via a weatherproofed cable
Motors are provided with Thermistor (PTC) with the resistance increasing drastically to a welldefined temperature figure. This sudden resistance variation blocks the PTC current, causing the output relay to operate, and the main circuit to switch-off. Motors are fitted with highest quality bearing selected and designed to ensure the long life time of the motors
Electrical supply: 380-400V/60Hz/3Ph.
- Included in delivery:
- Flexible sleeve
- Outlet fitting, square to round Weather protection
- Vibration dampers SDD-U (accessories)
- Condensate tray GB-KW (accessories)
- Wall bracket GB-WK (accessories)
- Weather protection cover GB-WSD (accessories)
PRODUCT CODE
(MPT 630 D4 2.2)- MPT: denotes fan type
- 630: denotes impeller diameter in millimeters
- D: denotes 3 ph motor.
- 4: denotes a nominal 4 pole speed
- 2.2: denotes the motor power in kw.
| Model | Impeller Dia | Max Air Flow | P.out | Full Load Ampere | Voltag | Frequency | Phase | Speed | Noise Level | |
|---|---|---|---|---|---|---|---|---|---|---|
| mm | hr/m3 | s/m3 | (Kw) | (A) | (V) | (Hz) | rpm | db | ||
| MPT 315 D2 1.1 | 315 | 3250 | 0.9 | 1.1 | 1.26 | 380 | 60 | 3 | 3360 | 346805 |
| MPT 315 D4 0.25 | 315 | 1550 | 0.43 | 0.25 | 0.739 | 380 | 60 | 3 | 1740 | 346806 |
| MPT 355 D2 2.2 | 355 | 5880 | 1.63 | 1.1 | 2.33 | 380 | 60 | 3 | 3360 | 346808 |
| MPT 355 D4 0.37 | 355 | 3100 | 0.86 | 0.37 | 1.23 | 380 | 60 | 3 | 1740 | 346809 |
| MPT 400 D2 4 | 400 | 8600 | 2.39 | 4 | 3.09 | 380 | 60 | 3 | 3450 | 346810 |
| MPT 400 D4 0.75 | 400 | 5150 | 1.43 | 0.75 | 1.71 | 380 | 60 | 3 | 1740 | 346811 |
| MPT 450 D2 2.2 | 450 | 12750 | 3.54 | 2.2 | 4.45 | 380 | 60 | 3 | 3450 | 346812 |
| MPT 450 D4 0.55 | 450 | 7100 | 1.97 | 0.55 | 1.23 | 380 | 60 | 3 | 1720 | 346813 |
| MPT 500 D4 1.1 | 500 | 10400 | 2.89 | 1.1 | 1.68 | 380 | 60 | 3 | 1730 | 346815 |
| MPT 560 D4 1.5 | 560 | 15300 | 4.25 | 1.5 | 3.15 | 380 | 60 | 3 | 1730 | 346817 |
| MPT 630 D4 4.0 | 630 | 22100 | 6.14 | 4 | 4.72 | 380 | 60 | 3 | 1740 | 346818 |
| MPT 630 D4 5.5 | 630 | 25400 | 7.06 | 5.5 | 6.98 | 380 | 60 | 3 | 1740 | 346819 |
| MPT 710 D4 7.5 | 710 | 29400 | 8.17 | 7.5 | 6.98 | 380 | 60 | 3 | 1740 | 346821 |
| MPT 710 D4 11.0 | 710 | 32600 | 9.06 | 11 | 8.03 | 380 | 60 | 3 | 1740 | 346822 |
| MPT 800 D6 5.5 | 800 | 37450 | 10.4 | 5.5 | 10.4 | 380 | 60 | 3 | 1150 | 346825 |
| MPT 900 D6 11.0 | 900 | 41500 | 11.53 | 11 | 8.99 | 380 | 60 | 3 | 1150 | 346828 |
| MPT 1000 D4 15.0 | 1000 | 71850 | 19.96 | 15 | 28.7 | 380 | 60 | 3 | 1150 | 346829 |

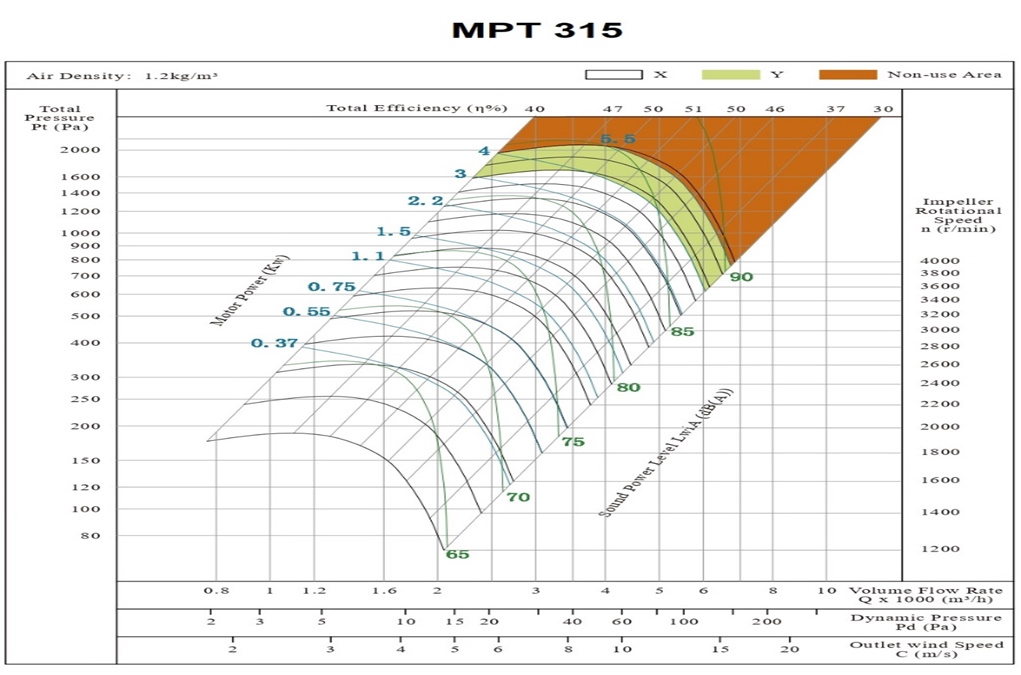

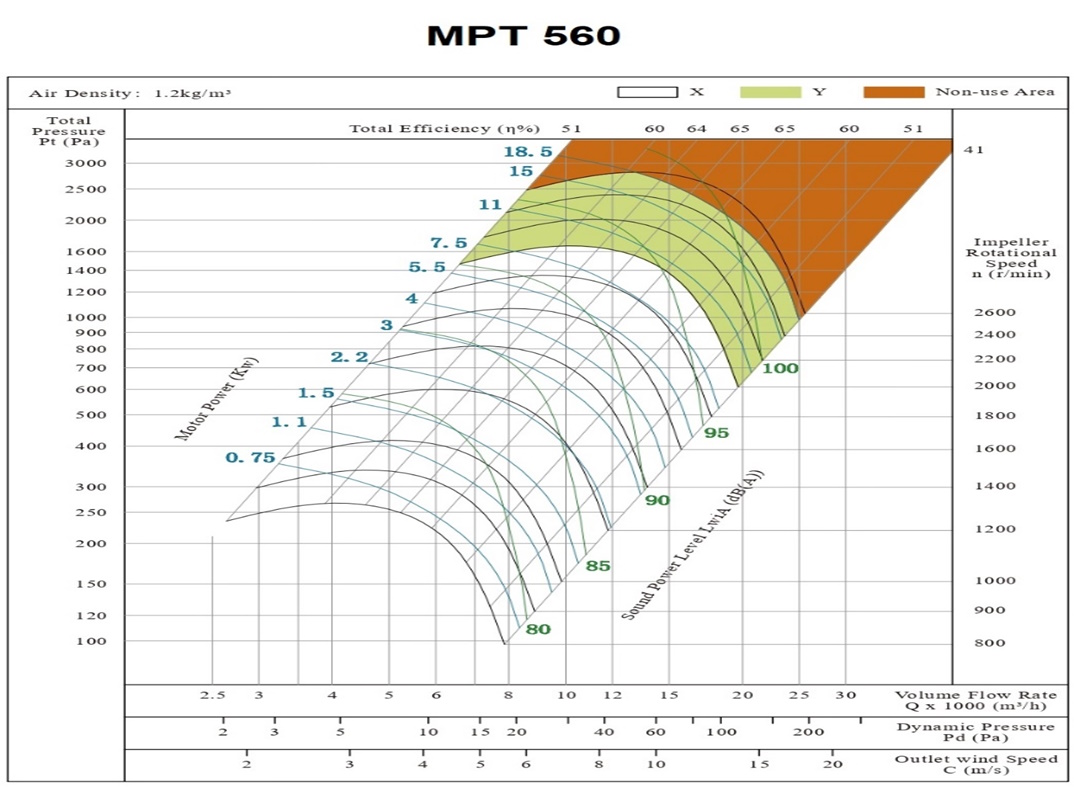

MPT 315

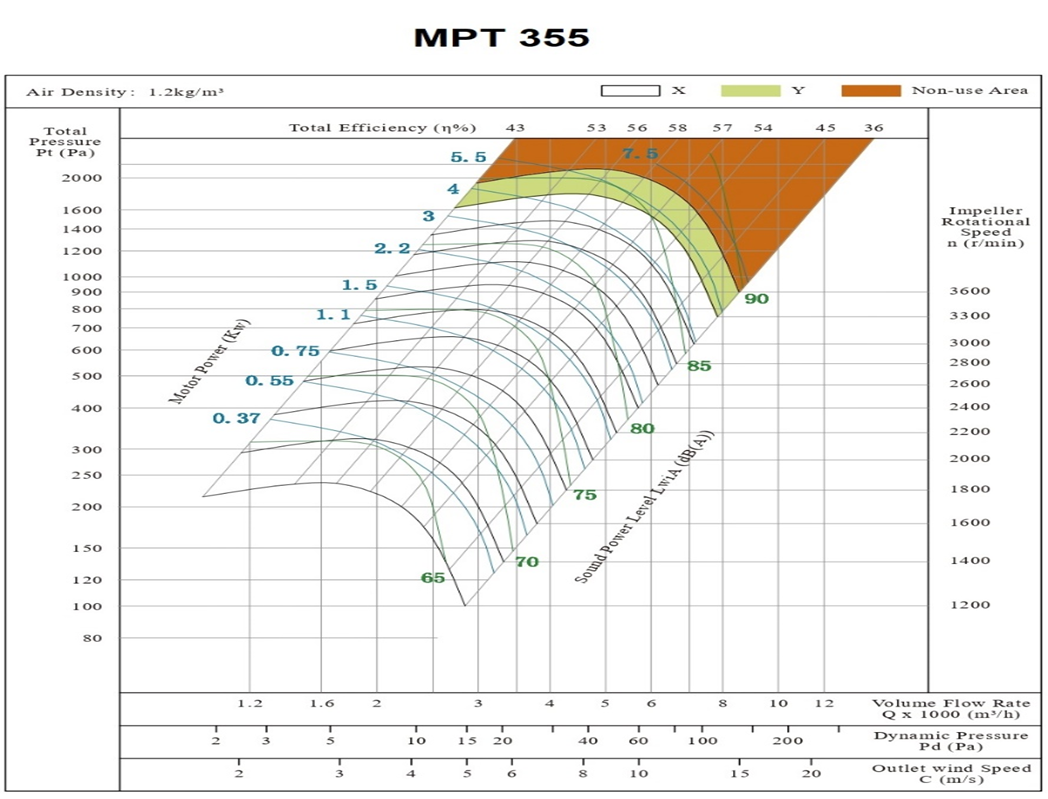

MPT 355

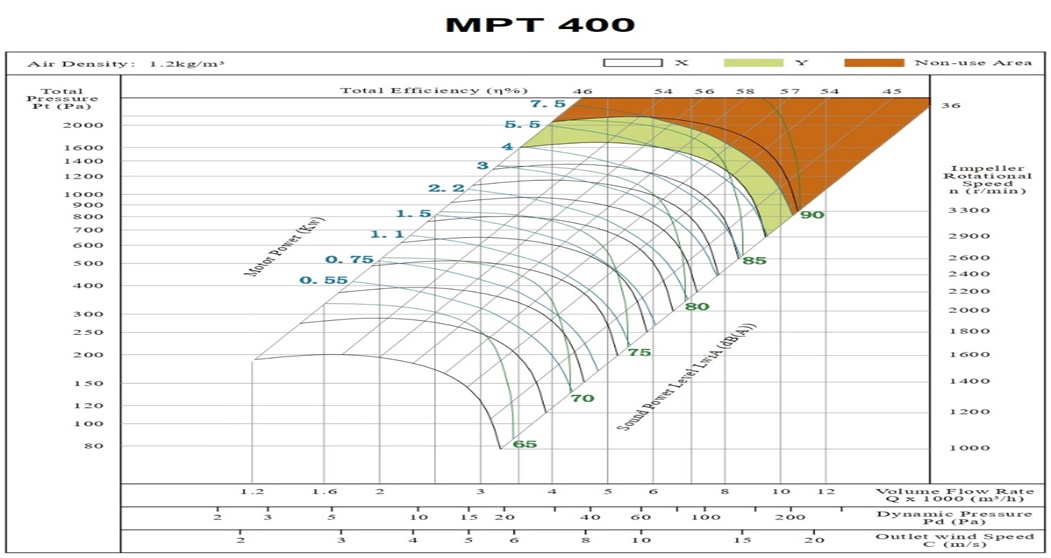

MPT 400

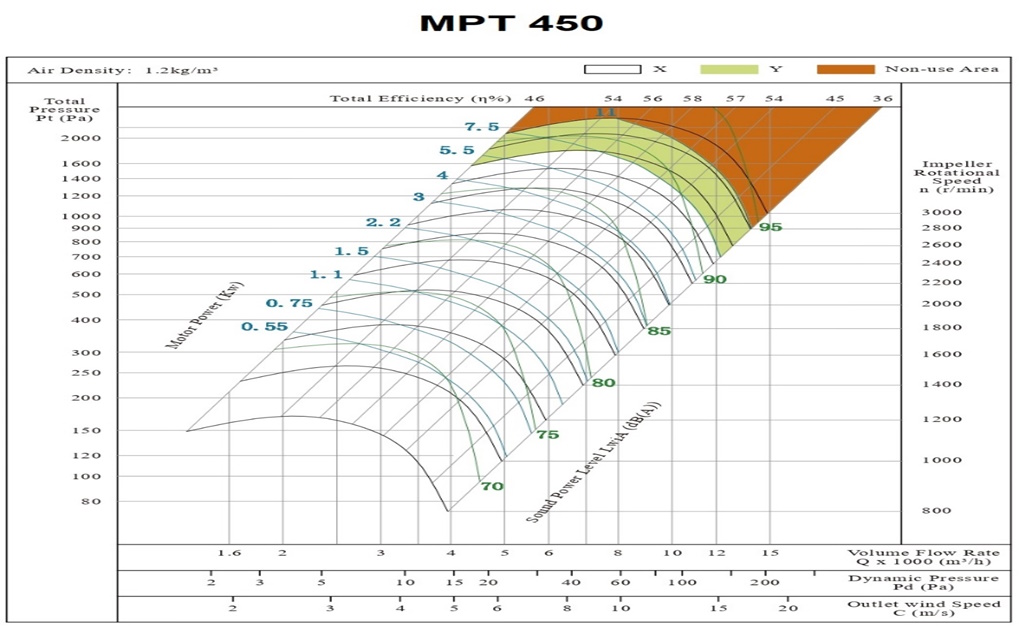

MPT 450

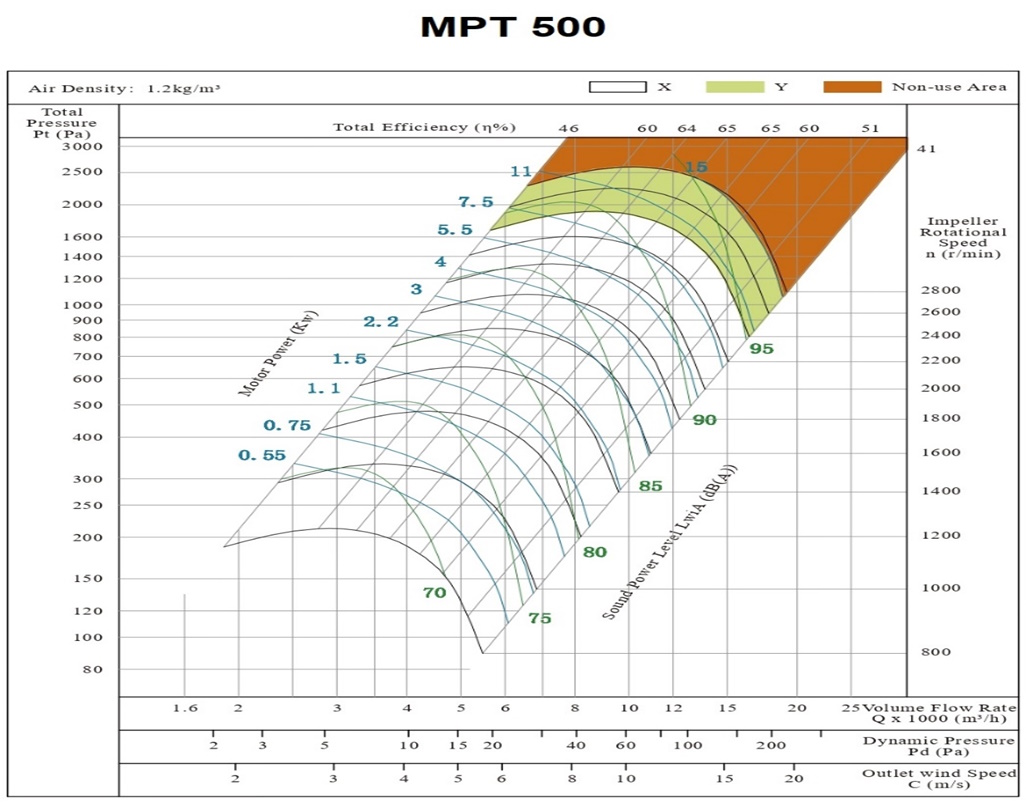

MPT 500
MPT 560

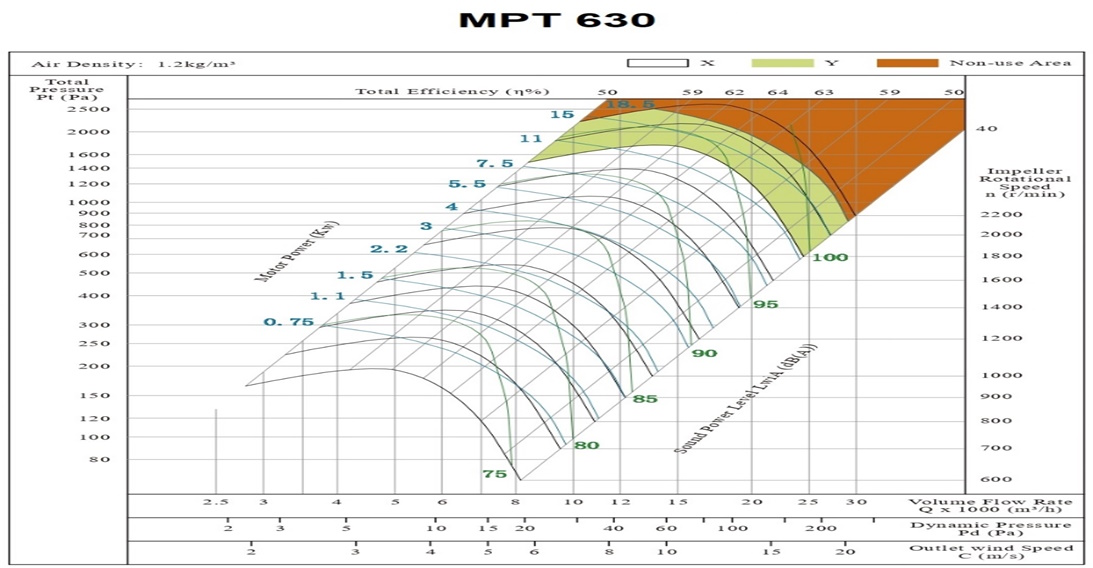

MPT 630

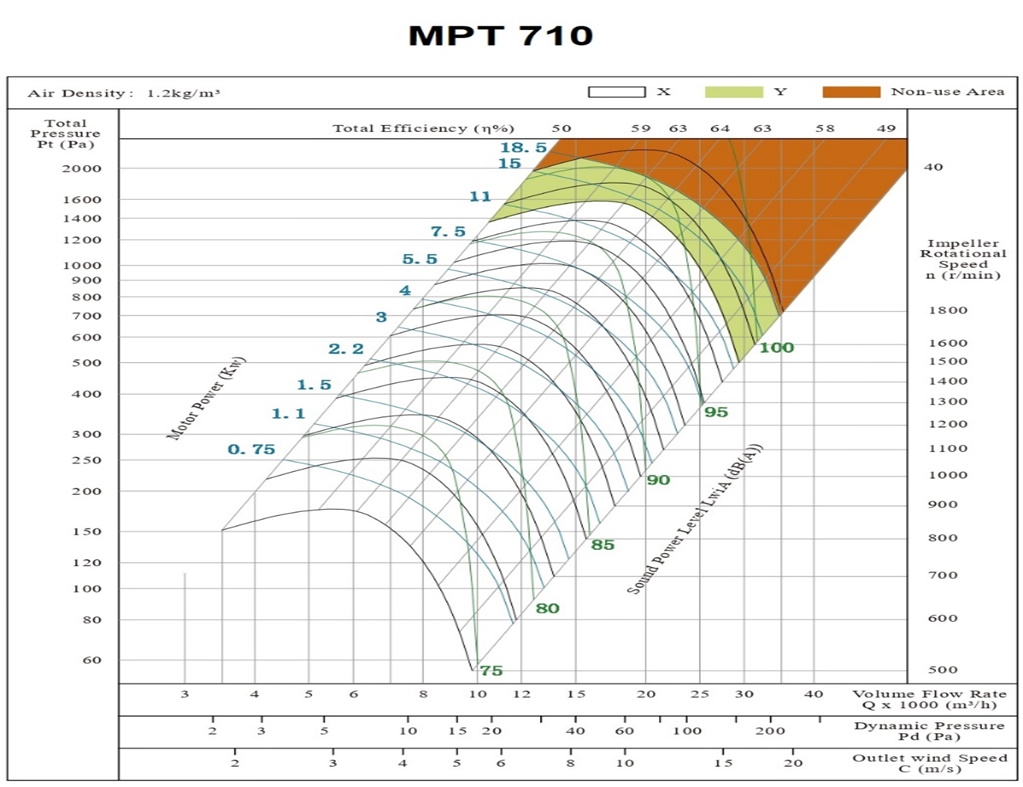

MPT 710

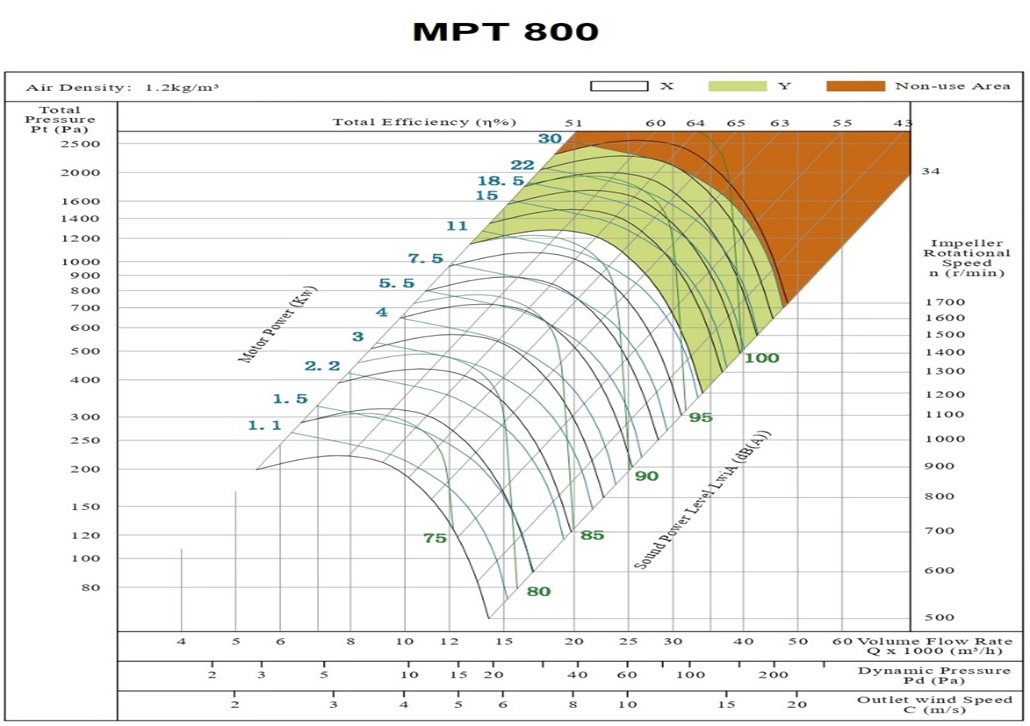

MPT 800
MPT 900
MPT 1000

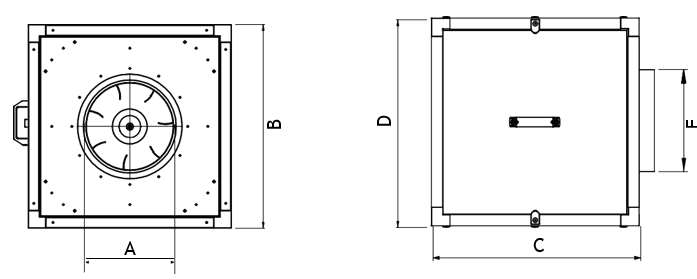

| Model | A | B | C | D | E |
|---|---|---|---|---|---|
| MPT 315 | 315 | 500 | 500 | 500 | 300 |
| MPT 355 | 355 | 700 | 700 | 700 | 300 |
| MPT 400 | 400 | 700 | 700 | 700 | 350 |
| MPT 450 | 450 | 700 | 700 | 700 | 400 |
| MPT 500 | 500 | 700 | 700 | 700 | 450 |
| MPT 560 | 560 | 900 | 900 | 900 | 500 |
| MPT 630 | 630 | 900 | 900 | 900 | 600 |
| MPT 710 | 710 | 1200 | 1200 | 1200 | 650 |
| MPT 800 | 800 | 1200 | 1200 | 1200 | 700 |
| MPT 900 | 1000 | 1400 | 1400 | 1400 | 750 |
| MPT 1000 | 1000 | 1400 | 1400 | 1400 | 750 |
